GaN I vs III vs V: Complete Generational Guide for OEM Buyers

1. Why GaN Generations Matter for OEM Sourcing

Gallium Nitride (GaN) power semiconductors have been through multiple commercial generations since hitting the market around 2018. Each generation brought real, measurable improvements: higher switching frequencies that allow smaller transformers, better thermal performance that extends product life, and higher power capabilities that open new product categories.

For OEM buyers, the generation directly impacts your product specs:

• → Size: GaN V chargers are roughly half the volume of equivalent GaN I designs
• → Heat: Lower operating temperatures mean fewer customer complaints about hot chargers
• → Power: PD 3.1 at 240W enables a single charger to power everything from earbuds to laptops
• → Cost: Each generation carries a different BOM premium that affects your margins
• → Marketing: "5th Generation GaN V" differentiates your product on crowded retail shelves

The three generations you will encounter in today's market are GaN I, GaN III, and GaN V. GaN II and GaN IV exist mostly in research literature and are not commercially significant for charger OEM sourcing. For a broader overview of GaN charging technology, see our complete GaN chargers guide.

According to Yole Group, the GaN power device market is projected to reach $2.5 billion by 2027, growing at a CAGR of 30%. This rapid expansion is driven by demand for smaller, more efficient chargers across consumer electronics, automotive, and data center applications. For OEM buyers, this means the technology is scaling fast and prices are dropping, but so is the window to be an early adopter in your category.

Want to see the actual products? WOWOHCOOL manufactures GaN V chargers from 35W to 100W+ with PD 3.1 support. Browse our GaN charger lineup.

2. GaN II and GaN IV: Why Charger Specs Skip Numbers

If you have seen GaN I, III, and V but never encountered GaN II or GaN IV in supplier datasheets, you are not missing anything. These generations exist primarily in academic research and non-consumer applications.

GaN II refers to vertical GaN-on-GaN substrate architectures. The promise was higher breakdown voltage and lower on-resistance, but manufacturing costs remain 5-10x higher than lateral GaN-on-Si. Applications are limited to defense, satellite power systems, and high-voltage industrial converters above 1,200V.

GaN IV covers experimental integrated GaN + driver IC monolithic designs that never reached consumer-grade volume. Some automotive LiDAR and 5G RF amplifier designs use GaN IV-class devices, but they are irrelevant to charger BOMs.

For OEM charger sourcing, only GaN I, III, and V matter. If a supplier references "GaN II" or "GaN IV" in a charger context, treat it as a red flag — they may be confusing marketing terminology with actual semiconductor generations.

3. GaN I: The Pioneer (2018)

GaN I hit the commercial market around 2018 and represented the first real alternative to silicon MOSFETs in power adapters. The key innovation was switching frequencies around 1MHz, roughly 10 times faster than silicon, which allowed manufacturers to reduce transformer sizes for the first time in decades.

Technical specs:

• → Switching frequency: ~1MHz
• → Peak efficiency: ~93%
• → Operating temperature: 85-90C at full load
• → Maximum PD: 100W (PD 3.0)
• → Size relative to GaN I: Baseline

GaN I devices used a depletion-mode architecture that required cascode configurations with silicon MOSFETs. According to the GaN semiconductor Wikipedia entry, this hybrid approach limited some of the theoretical advantages of pure GaN but still delivered meaningful size reductions, typically 20-30% smaller than equivalent silicon chargers in the 45-65W range.

Today's relevance: GaN I is effectively obsolete for new OEM designs. Infineon, the leading GaN manufacturer, has discontinued its first-generation CoolGaN G1, all new designs must use G5 or later. You will still find GaN I in budget chargers from less reputable suppliers, but any established manufacturer has moved to GaN III or GaN V. If a supplier quotes pricing significantly below market averages for "GaN" without specifying the generation, there is a good chance they are using GaN I or even enhanced silicon.

4. GaN III: The Efficiency Leap (2020)

GaN III entered the market around 2020-2021 with a fundamental architecture change: enhancement-mode transistors that eliminated the need for cascode silicon configurations. This allowed GaN III to operate at approximately 3MHz switching frequencies with lower losses and better thermal characteristics.

Enhancement-Mode vs Cascode Architecture

The architectural shift between GaN I and GaN III is the single biggest reason GaN III runs cooler and uses simpler PCBs. Cascode GaN (used in GaN I) pairs a depletion-mode GaN HEMT with a low-voltage silicon MOSFET. The silicon FET handles gate switching while the GaN device blocks high voltage. It works, but the silicon adds switching losses, EMI, and an extra component on the BOM.

Enhancement-mode (e-mode) GaN (used in GaN III and V) switches natively without a silicon driver companion. The result: 30-40% lower switching losses, simpler gate-drive PCB layout, and ~15% fewer components on the high-voltage side. The trade-off is tighter gate-drive voltage tolerance — overshoot above 6V can permanently damage the FET, which is why suppliers must use qualified gate-drive ICs (TI UCC2152x, Navitas NV6128 integrated drive, etc.).

For OEM buyers, this matters because e-mode chargers are easier to qualify for safety certifications (see our charger safety standards guide), run cooler in the enclosure, and have a smaller BOM. If a supplier still ships GaN I cascode designs, expect higher return rates and harder thermal compliance for closed-vent products like wall-mounted hubs.

Technical specs:

• → Switching frequency: ~3MHz
• → Peak efficiency: ~95%
• → Operating temperature: 75-80C at full load
• → Maximum PD: 140W (PD 3.0)
• → Size vs GaN I: ~30% smaller

Real-world example: A product manager at a mid-sized consumer electronics brand sourced 5,000 units of 65W GaN III chargers for his travel accessories line. The size advantage alone let him shrink packaging by 35%, cutting per-unit shipping costs by $0.80. The charger also ran cool enough to include a soft travel pouch. His line launched at $39.99 and held a 4.3-star average over 2,000 reviews.

Today's relevance: GaN III is the solid mid-range option. It delivers good performance at a 10-15% BOM premium over GaN I. For brands testing a new market or launching their first GaN product, GaN III offers a reasonable cost-risk profile. The main limitations are the lower maximum power (140W vs. 240W) and the lack of a distinct "5th Gen" marketing story.

5. GaN V: Today's Peak Performance (2023)

GaN V represents the current state of the art in commercial GaN power semiconductors. Available since 2023-2024, GaN V pushes switching frequencies beyond 5MHz while maintaining excellent thermal characteristics.

Technical specs:

• → Switching frequency: 5MHz+
• → Peak efficiency: ~97%
• → Operating temperature: 65-75C at full load
• → Maximum PD: 240W (PD 3.1 EPR)
• → Size vs GaN I: ~50% smaller

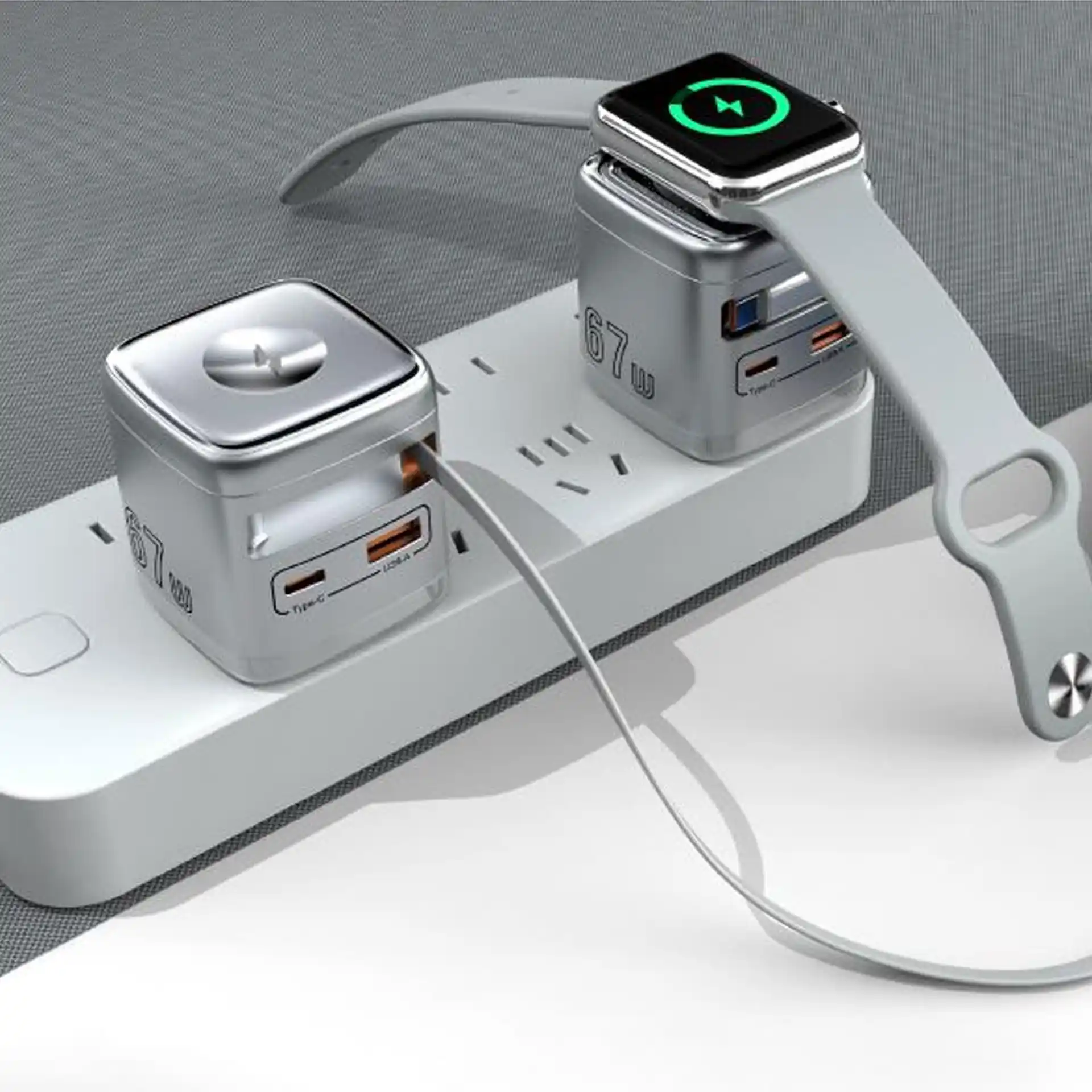

WOP37 67W GaN V charger, retractable cable + Qi2 wireless charging in one device. View full specs

The higher switching frequency is the key enabler. It allows significantly smaller magnetic components such as transformers, inductors, and capacitors, which drives the 50% size reduction. A 100W GaN V charger is roughly the size of a traditional 30W silicon charger.

PD 3.1 at 240W: GaN V is the first generation capable of supporting the full USB-C PD 3.1 Extended Power Range (EPR). A single charger can power earbuds, phones, tablets, laptops, and monitors. For brands targeting the premium travel and workstation segments, this is a product category that simply did not exist before GaN V.

How GaN V Enables PD 3.1 EPR at 240W

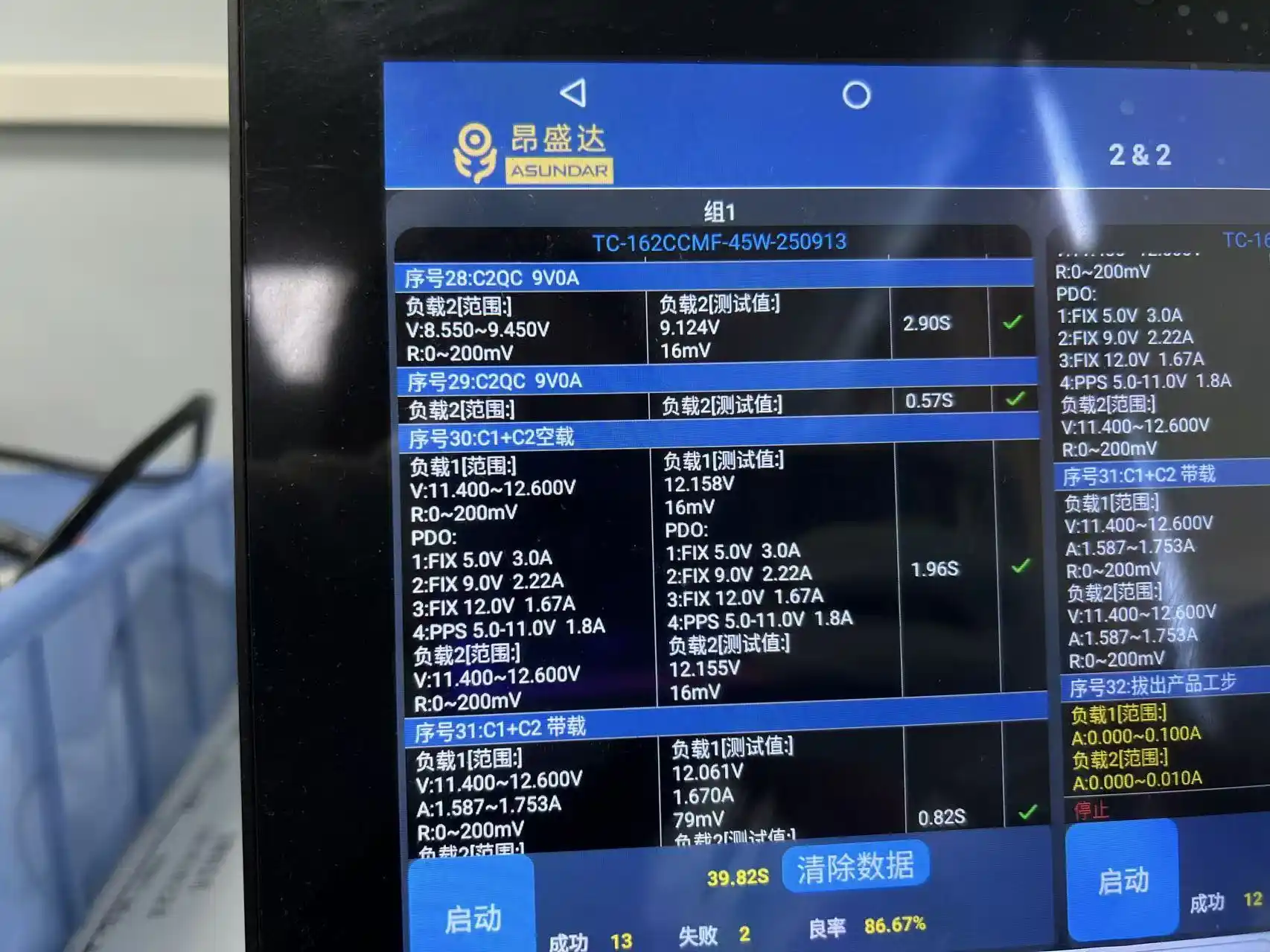

PD 3.1 EPR adds three voltage rails above the standard 20V: 28V, 36V, and 48V. A 240W charger must hold stable output at 48V / 5A while transitioning between rails in under 500 microseconds. GaN V's 5MHz+ switching makes this possible — the higher frequency means the control loop responds fast enough to maintain voltage regulation during rail jumps without output ripple exceeding the USB-IF's 200mV spec.

GaN III's ~3MHz switching can manage basic PD 3.0 SPR (up to 100W at 20V / 5A) and some designs reach 140W, but the thermal and frequency headroom is insufficient for reliable 48V EPR operation. In practice, GaN III chargers labeled "PD 3.1" are usually limited to 140W and do not implement the full EPR voltage range. Ask suppliers for the PPS (Programmable Power Supply) step granularity — genuine GaN V implementations support 20mV steps across all voltage rails.

Real-world example: An outdoor gear brand launched a 100W GaN V travel charger in early 2025. The charger was small enough to fit in a shirt pocket, a feature that generated over 500 social media shares in the first month. At $59.99 retail, it commanded a 50% premium over their previous 65W GaN III model. The return rate was 1.2%, compared to 3.8% for the older model. Within six months, the GaN V line accounted for 40% of their charging accessory revenue.

Why the premium is worth it: GaN V carries a 20-35% BOM premium over GaN I, but the total cost of ownership tells a different story:

• → Shipping savings: 40% smaller and lighter reduces per-unit freight by $0.50-2.00
• → Return reduction: Lower operating temperature cuts thermal-related failures by an estimated 40-60%
• → Premium pricing: The "5th Gen GaN" story supports 20-50% higher retail pricing
• → Longer product life: Cooler operation extends component lifespan, reducing warranty claims

For a deeper look at GaN V manufacturing specifically, see our GaN V OEM Manufacturing Guide.

According to Yole Intelligence, GaN FET prices have declined 10-15% annually as production scales, with GaN V projected to reach price parity with GaN III by 2027-2028. As of mid-2026, OEM-volume GaN V FET pricing sits at approximately $0.80-1.50 per unit (10K+ quantity), compared to $0.50-0.90 for GaN III and $0.30-0.60 for GaN I equivalents. These figures represent a 25-30% decrease from 2024 launch pricing for GaN V parts. "Starting with GaN V now positions your brand to benefit from falling costs rather than playing catch-up on a technology your competitors already own," says Nina Nico, OEM Technical Lead at WOWOHCOOL.

6. GaN I vs III vs V: Side-by-Side Comparison Table

Here is the GaN I vs III vs V comparison that matters for OEM sourcing decisions:

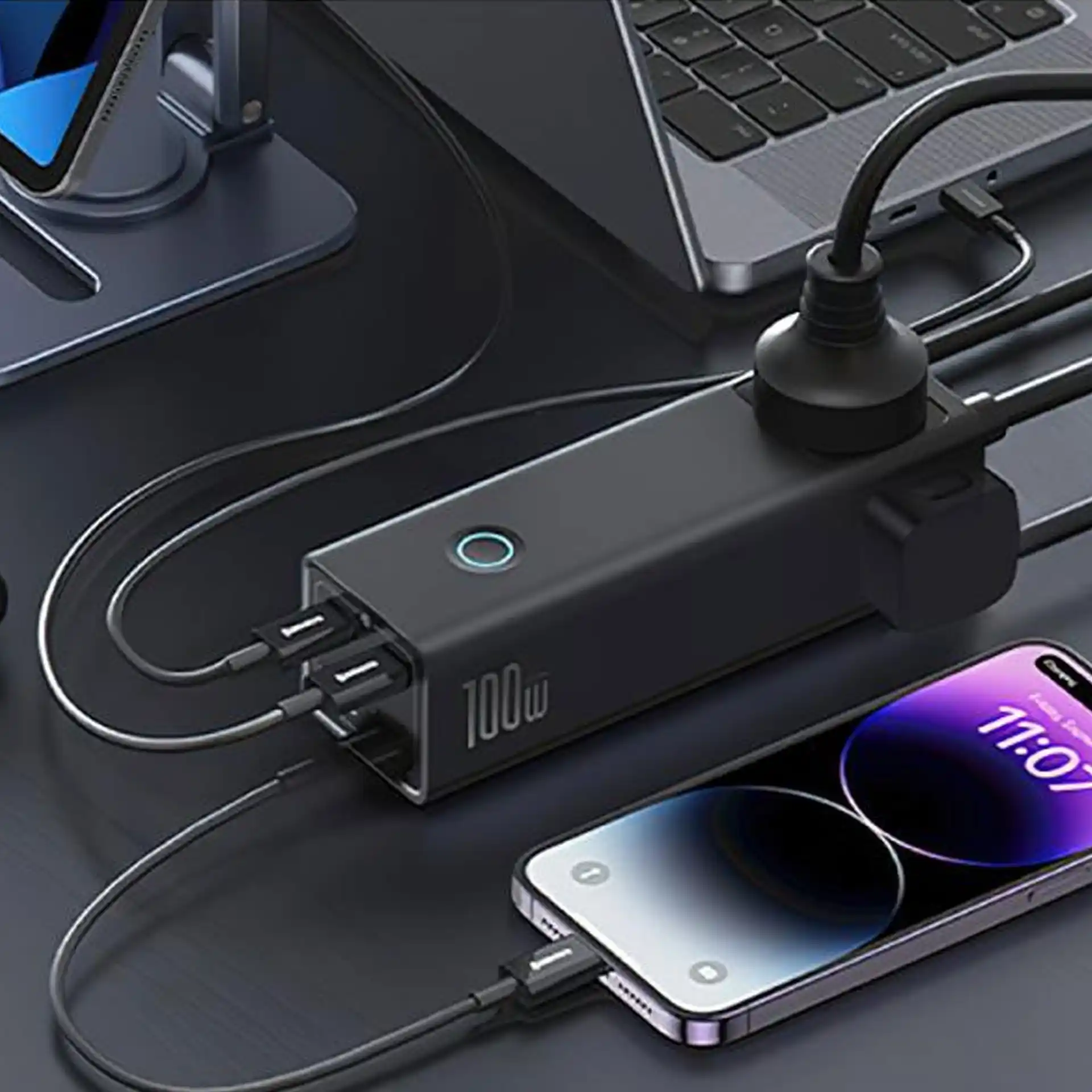

WOP80 100W GaN V charging station, ports, PD 3.1. View full specs

Which generation for which product?

• → Budget / economy line (sub-$25 retail): GaN I still works for basic 30-65W charging, but GaN III at +10-15% BOM is increasingly the minimum acceptable option for retail channels.
• → Mid-range value line ($25-$45 retail): GaN III is the sweet spot. Good thermal performance, adequate power for phones and tablets, reasonable BOM cost.
• → Premium / flagship ($45+ retail): GaN V is the clear choice. The 20-35% BOM premium is recovered through higher ASP, lower returns, and the marketing advantage.

Not sure which is right for your project? WOWOHCOOL offers OEM/ODM services across all GaN generations, with GaN V as our primary platform for new designs. Contact our engineering team to discuss your requirements.

7. Real-World GaN FET Models You'll See in 2026 OEM Quotes

Generic spec sheets are easy to fake. Specific FET part numbers are not. When you ask a supplier for the GaN device used in their charger, the answer should be one of a handful of qualified parts from these vendors. Here are the FET families currently shipping in volume for OEM charger designs in 2026:

How to use this table during sourcing: When you receive a sample, ask the supplier to confirm the FET part number and provide the manufacturer datasheet. Cross-reference the part on the vendor's website. If the supplier refuses to disclose the part or quotes a generic "domestic GaN FET" without a brand-name part number, treat it as a sourcing risk. Navitas and Innoscience publish full datasheets with switching frequency, gate-charge, and thermal resistance — these are the numbers that prove the generation claim.

Anker, Belkin, and Ugreen have all publicly disclosed their use of Navitas GaNFast in flagship product lines (per Semiconductor Today coverage). For OEM buyers building competing products, specifying the same FET family is the fastest path to matching their performance benchmarks while still controlling your branding and packaging.

8. How to Identify Real GaN V

The GaN labeling problem is real. Here are five verification methods for OEM buyers:

1. Check switching frequency. Genuine GaN V operates at 5MHz or higher. This number must appear in the technical datasheet. If a supplier cannot provide it, proceed with caution.

2. Verify the GaN FET manufacturer. Real GaN V uses FETs from Navitas, Innoscience, GaN Systems, or EPC. Request the specific part number and cross-reference it against the manufacturer's published specifications.

3. Request thermal images. A genuine GaN V charger should maintain 65-75C at full load after 30 minutes. If the supplier's charger runs at 85C+, it is using older generation GaN or enhanced silicon.

4. Confirm PD 3.1 EPR support. Only GaN V supports the full 240W Extended Power Range. If a "GaN V" charger maxes out at 100W PD 3.0, the labeling is incorrect.

5. Size check. A genuine 100W GaN V charger occupies approximately 70cm or less. If the product is significantly larger than a deck of cards, it is not using GaN V.

Real-world example: A European distributor tested samples from three different "GaN V" suppliers. Only one passed all five checks. The other two were using GaN III and enhanced silicon respectively, labeled as GaN V. The distributor saved an estimated $40,000 in potential returns and brand damage by verifying before committing to a 10,000-unit order.

Working with an established OEM partner eliminates verification risk. WOWOHCOOL sources GaN V FETs directly from Navitas and Innoscience, maintains full component traceability, and provides thermal test data with every sample shipment. Our OEM/ODM service page details the full manufacturing and verification process. For a step-by-step supplier vetting framework, see our factory verification checklist.

9. Which Generation Should You Choose?

Your choice depends on three factors: target retail price point, product lifecycle expectations, and brand positioning. If you are still evaluating whether OEM or ODM is the right path for your project, our OEM vs ODM guide covers the trade-offs in detail.

Choose GaN I only if you are building an absolute budget product (sub-$20 retail) and your customers do not expect premium performance. Be aware that many retailers and distributors now require a minimum of GaN III for new listings.

Choose GaN III if you are launching a mid-range product line, testing a new market with conservative volume, or need to hit a specific retail price point below $45. GaN III delivers solid performance at a 10-15% BOM premium and is well-understood by contract manufacturers.

Choose GaN V if you are building a premium brand, targeting retail price points above $45, or need PD 3.1 power above 140W. The 20-35% BOM premium is offset by higher average selling prices, lower return rates, and the marketing advantage of "5th Generation GaN" technology.

10. What's Next: GaN VI and GaN+SiC Hybrid Designs

If you are planning a charger product cycle that ships in 2027-2028, the next-generation roadmap matters. Three technology shifts are already visible in semiconductor vendor announcements:

GaN VI (engineering samples 2027). Navitas, Innoscience, and Infineon have all signaled a sixth-generation GaN family targeting 7-8MHz switching frequencies and integrated digital control. The expected gains: another 30-40% size reduction over GaN V at 100W, plus on-die telemetry that lets the charger negotiate not just voltage but also thermal headroom in real-time. Commercial volume is expected late 2028 to 2029.

GaN + SiC hybrid topologies. For chargers above 240W (workstation hubs, EV-class portable chargers), pairing GaN V on the primary side with silicon carbide (SiC) on the high-voltage rectification side delivers efficiency gains of 1-2 percentage points at full load. This is overkill for phone chargers but relevant for the emerging 300-500W laptop docking station category.

Integrated drive + protection ICs. Navitas' GaNSafe and Power Integrations' InnoSwitch4 platforms bundle the FET, gate driver, current sensing, and over-temperature protection into a single package. For OEMs, this cuts BOM count by 8-12 components per charger and shrinks PCB area by ~25%, but locks the design to a single supplier ecosystem.

What this means for your 2026 sourcing decisions: GaN V remains the best choice for products shipping through 2027. Avoid locking in GaN III for designs you plan to keep in market past 2026, since retail channels are increasingly listing "GaN generation" in product specs and GaN III will look dated by 2027.

11. Frequently Asked Questions

Conclusion

Choosing the right GaN generation is a strategic decision that impacts your product's size, thermal performance, power capability, and market positioning. GaN I is largely retired for new designs. GaN III serves the mid-range well with a balanced cost-performance profile. GaN V delivers the performance and marketing advantages needed for premium product lines in 2026 and beyond.

The cost gap between generations continues to narrow. Starting with GaN V now positions your brand for the next 2-3 product cycles rather than playing catch-up in a market where "GaN" alone is no longer a differentiator. The generation is what sets you apart.

Ready to discuss your next charger project? WOWOHCOOL manufactures genuine GaN V chargers with PD 3.1 up to 240W. MOQ starting at 500 units. Request OEM pricing and thermal test data.
